Large-Scale Organic Fertilizer Equipment Manufacturer
Zhengzhou City, China
FOB Reference Price: Get Latest Price

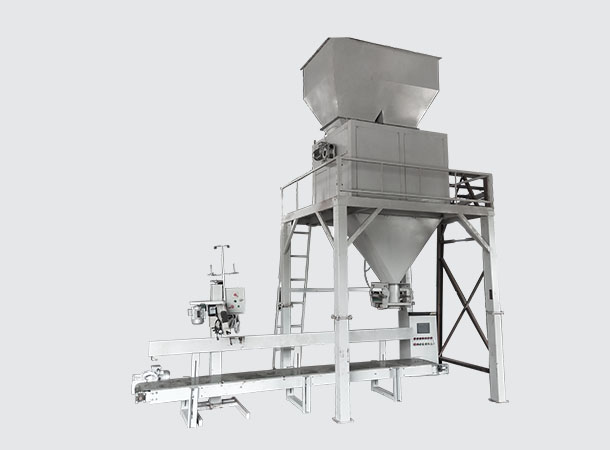

Description: Automatic quantitative packaging scale specially is designed for quantitative packaging, which is divided into double-bucket packaging scale and single-bucket packaging scale. It adopts an integrated structure, with small scale height, compact structure, energy saving and high efficiency, novel appearance, simple installation, convenient maintenance.
Parameter:
Weighing range: 25-50kg
Automatic quantitative packaging scale is designed for quantitative packaging, and is divided into double-bucket packaging scales and single-bucket packaging scales. It adopts an integrated structure, with small scale height, compact structure, energy saving and high efficiency, novel appearance, simple installation, convenient maintenance. The quantitative accuracy of the system is two thousandths.
Performance characteristics:
Packaging is fast.
High measurement accuracy.
High reliability: The main control system components adopt imported products, and the instruments adopt Japanese technology;
Reasonable mechanical structure: the system is maintenance-free, and the material adaptability is strong.
The material contacting part is made of anti-corrosion material.
Model/specification/index |
Weighing range |
Packaging accuracy |
Packing rate |
Display undivided value |
working environment |
working power |
Working air source |
||||
|
|
single |
average |
Single weighing |
|
temperature |
Relative humidity |
Voltage |
frequency |
Air pressure |
frequency |
SD-50 |
25-50 |
<±0.2% |
<±0.1% |
300-400 |
0.01 |
-10-40° |
<95% |
AC220V |
50Hz |
0.4-0.6Mpa |
<0.5m3/h |
Special model |
>100 |
It can be customized according to client’s requirement |
Note: Sewing machine, automatic counting machine, infrared trimming machine and folding machine, can be optional according to customer requirements.
