Disk granulator

Disk granulator Introduction

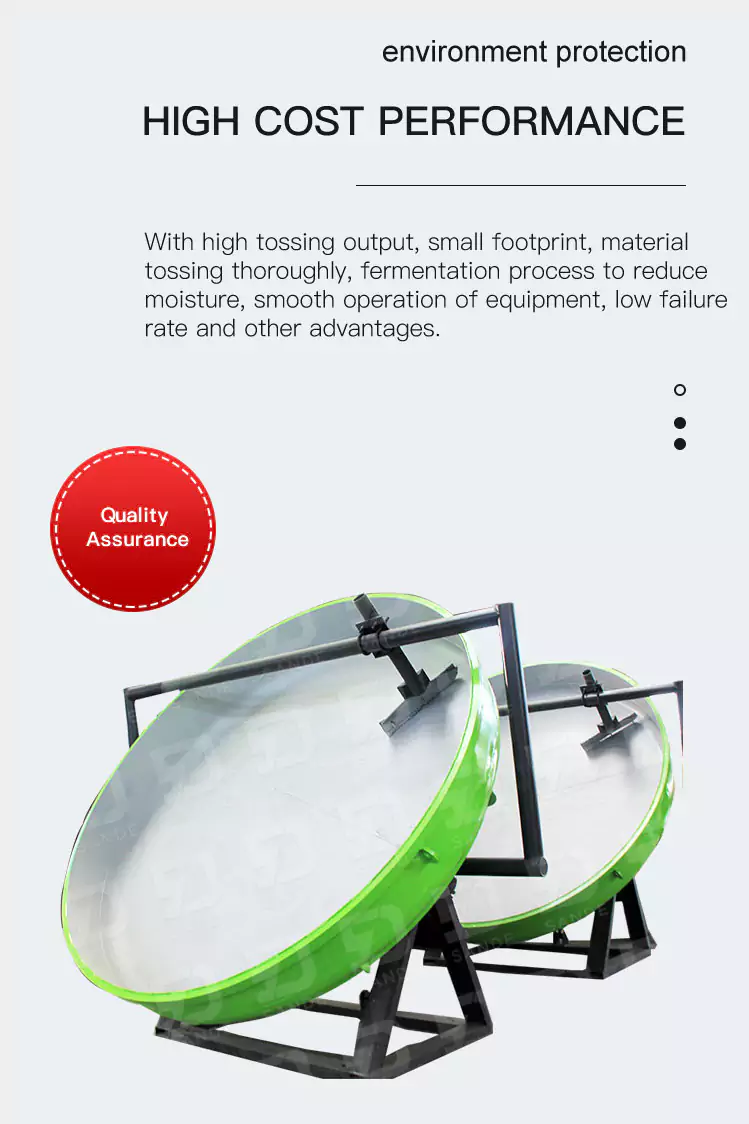

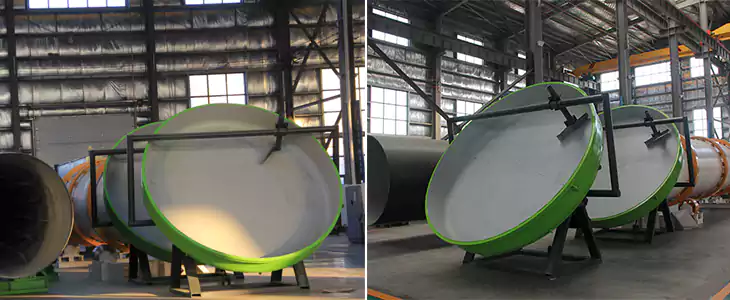

Disc granulator (also known as spherical disc), the granulating disc adopts an overall arc structure, and the granulation rate can reach more than 93%. The granulating disc is equipped with three discharge ports, which is convenient for intermittent production operations, greatly reduces labor intensity, and improves labor efficiency. The reducer and motor are driven by flexible belts, which can start smoothly, reduce the impact of buffer, and improve the service life of the equipment. The bottom of the granulating disc is reinforced with multiple radiant steel plates, which is strong and durable without deformation. Heavier, thicker, solid base design, no anchor bolts are needed, stable operation, it is an ideal equipment for organic fertilizer and compound fertilizer granulation.

Disk Granulator Application:

Disc granulator is widely used in the processing of spherical particles of bio-organic fertilizer, such as pulverized coal, cement, clinker, chemical fertilizer and other materials.

Disk Granulator Equipment Features:

1.High efficiency. The granulating disc adoptsthe whole circular arc structure, and the granulation rate can reach more than 93%.
2.The granulating disc is lined with high strength glass steel, and is durable and anti-corrosive. This equipment has advantages of high granulation rate, smooth operation, durable and strong work and long service life.


Main Technical Parameters

Model	Diameter(mm)	Disc height (mm)	Rotating speed(r/min)	Power (kW)	Capacity(t/h)	Reducer model (kW)	Overall dimensions (mm)
SDYZ-500	500	200	32	0.55	0.02-0.05	BWY0-43-0.55	650x600x800
SDYZ-600	600	280	33.5	0.75	0.05-0.1	BWY0-43-0.55	800x700x950
SDYZ-800	800	200	21	1.5	0.1-0.2	XWD4-71-1.5	900x1000x1100
SDYZ-1000	1000	250	21	1.5	0.2-0.3	XWD4-71-1.5	1200x950x1300
SDYZ-1200	1200	250	21	1.5	0.3-0.5	XWD4-71-1.5	1200x1470x1700
SDYZ-1500	1500	300	21	3	0.5-0.8	XWD5-71-3	1760x1500x1950
SDYZ-1800	1800	300	21	3	0.8-1.2	XWD5-71-3	2060x1700x2130
SDYZ-2000	2000	350	21	4	1.2-1.5	XWD5-71-4	2260x1650x2250
SDYZ-2500	2500	450	14	7.5	1.5-2.0	ZQ350	2900x2000x2750
SDYZ-2800	2800	450	14	11	2-3	ZQ350	3200x2200x3000
SDYZ-3000	3000	450	14	11	2-4	ZQ350	3400x2400x3100
SDYZ-3600	3600	450	13	18.5	4-6	ZQ400	4100x2900x3800

Note: technical data is subject to change without prior notice.
