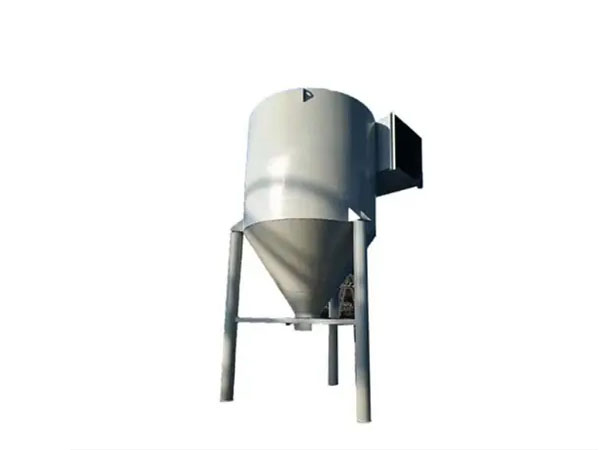

Cyclone dust collector

Cyclone dust collector Introduction

The cyclone dust collector is a kind of dust removal device. The dust removal mechanism is to make the dusty air flow rotate, separate the dust particles from the air flow and trap them on the wall with the help of centrifugal force, and then make the dust particles fall into the ash hopper with the help of gravity. Each component of the cyclone dust collector has a certain size proportion. Every change in the ratio relationship can affect the efficiency and pressure loss of the cyclone dust collector, The diameter of the dust collector, the size of the air inlet, and the diameter of the exhaust pipe are the main influencing factors. It should be noted in use that when a certain limit is exceeded, favorable factors can also be transformed into unfavorable factors. In addition, some factors are beneficial to improve the dust removal efficiency, but will increase the pressure loss. Therefore, the adjustment of various factors must be taken into account.

Main Technical Parameters

Model	Air volume(m3/h)	Equipment resistance(Pa)	Inlet flow rate(m/s)	Dimensions (tube diameter x height)	Weight(kg)
SDDT-200	370 ~ 590	800~2160	14-22	φ200x940	37
SDDT-300	840~1320	800~2160	14-22	φ300x1360	54
SDDT-400	1500 ~ 2340	800~2160	14-22	φ400x1780	85
SDDT-500	2340 ~ 3660	800~2160	14-22	φ500x2200	132
SDDT-600	3370~5290	800~2160	14-22	φ600x2620	183
SDDT-700	4600 ~ 7200	800~2160	14-22	φ700x3030	252
SDDT-800	5950 ~ 9350	800~2160	14-22	φ800x3450	325
SDDT-900	7650~11890	800~2160	14-22	φ900x3870	400
SDDT-1000	9340~14630	800 ~ 2160	14-22	φ1000x4280	500
