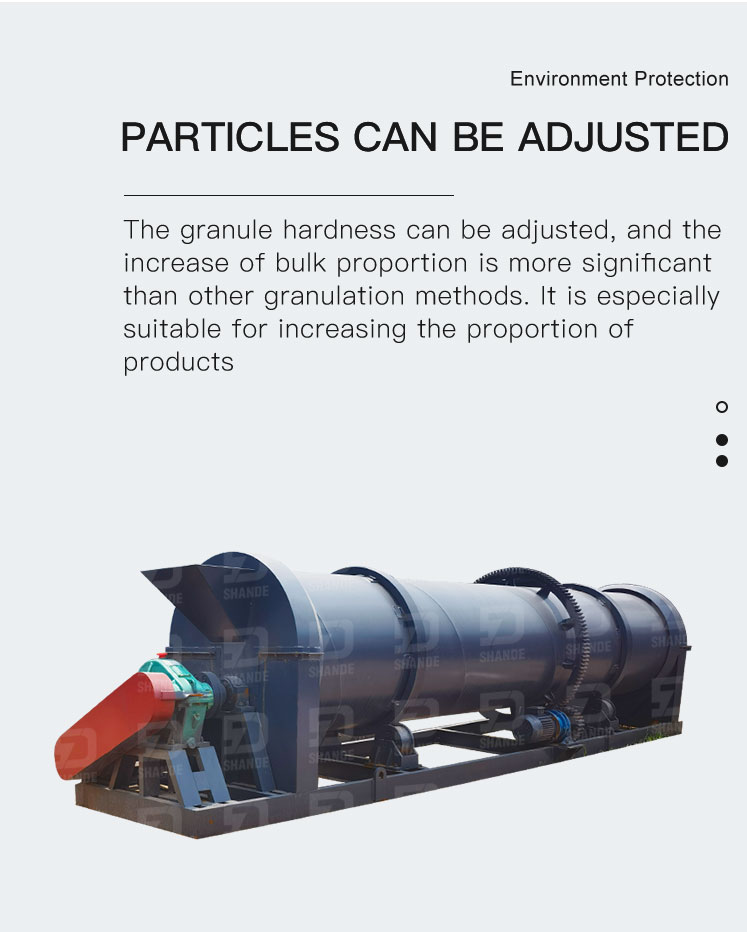

Rotary drum fertilizer granulator Introduction

The drum granulator is a molding machine that can manufacture materials into specific shapes. The drum granulator is one of the key equipment in the compound fertilizer industry, which is suitable for the large-scale production of cold and hot granulation as well as high-, medium- and low-concentration compound fertilizers. The main working method is wet granulation of agglomerates. Through a certain amount of water or steam, the basic fertilizer is fully chemically reacted in the cylinder after the humidity is adjusted. Under a certain liquid phase condition, the rotation of the cylinder can make the material particles Produce squeezing force to reunite into balls.

Main Technical Parameters

Model	Power(kw)	Diameter (mm)	Length (mm)	Installationangle	Rotating speed(r/min)	Capacity
SDZGZ-1240	5.5	1200	4000	2-5	17	1-3
SDZGZ-1560	11	1500	6000	2-5	11.5	3-5
SDZGZ-1870	15	1800	7000	2-5	11.5	5-8
SDZGZ-2080	18.5	2000	8000	2-5	11	8-15
SDZGZ-2210	37	2200	10000	2-5	9.5	15-30
SDZGZ-2412	50	2400	12000	2-5	8	20-35
